It’s good to see that with the associated fee cap the larger Components 1 groups at the moment are having to learn to address having a scarcity of spares, which means working repairs have turn out to be the norm. However for the smaller groups, this has at all times been a reality of life.
After each Mercedes automobiles suffered in depth crash harm due to first Lewis Hamilton then George Russell crashing throughout Q3 in Austria, the workforce needed to do a minimize and shut job on the ground of one among its automobiles.
As technical director Mike Elliott put it, Mercedes had “to construct one ground out of two” as a result of it merely didn’t have sufficient shiny new spares to bolt new ones onto every automobile. That meant the travelling composite workforce needed to do a reasonably complete restore job.
Carbon composite repairs are by no means simple, particularly when on the circuit. However most groups will carry some carbon materials, a vacuum pump and an electrical blanket to use the warmth required to set off the resin system.
With one thing like a ground, it should have two carbon skins – one both sides of a honeycomb or foam central infill. If you’ll splice two collectively, you’ll stagger the joint line the place you chop the skins, place each components in place and overlap these joints with a brand new strip of woven carbon that’s already impregnated with no matter resin system you employ.
After that, you cowl the repaired space with a breather material. Then, a plastic sheet will get taped down all the best way across the perimeter of the restore. This can have a connector for the vacuum pump inlet.
You then begin the pump up and be sure to can pull a vacuum on that space, then wrap it up within the blanket to generate the warmth required to show the resin system right into a liquid and stand again for just a few hours.
When that’s all completed, you’re taking the plastic sheet and the breather material off and tidy all of it up. Sure, you’ve got elevated the burden barely however you now have an element you should utilize.

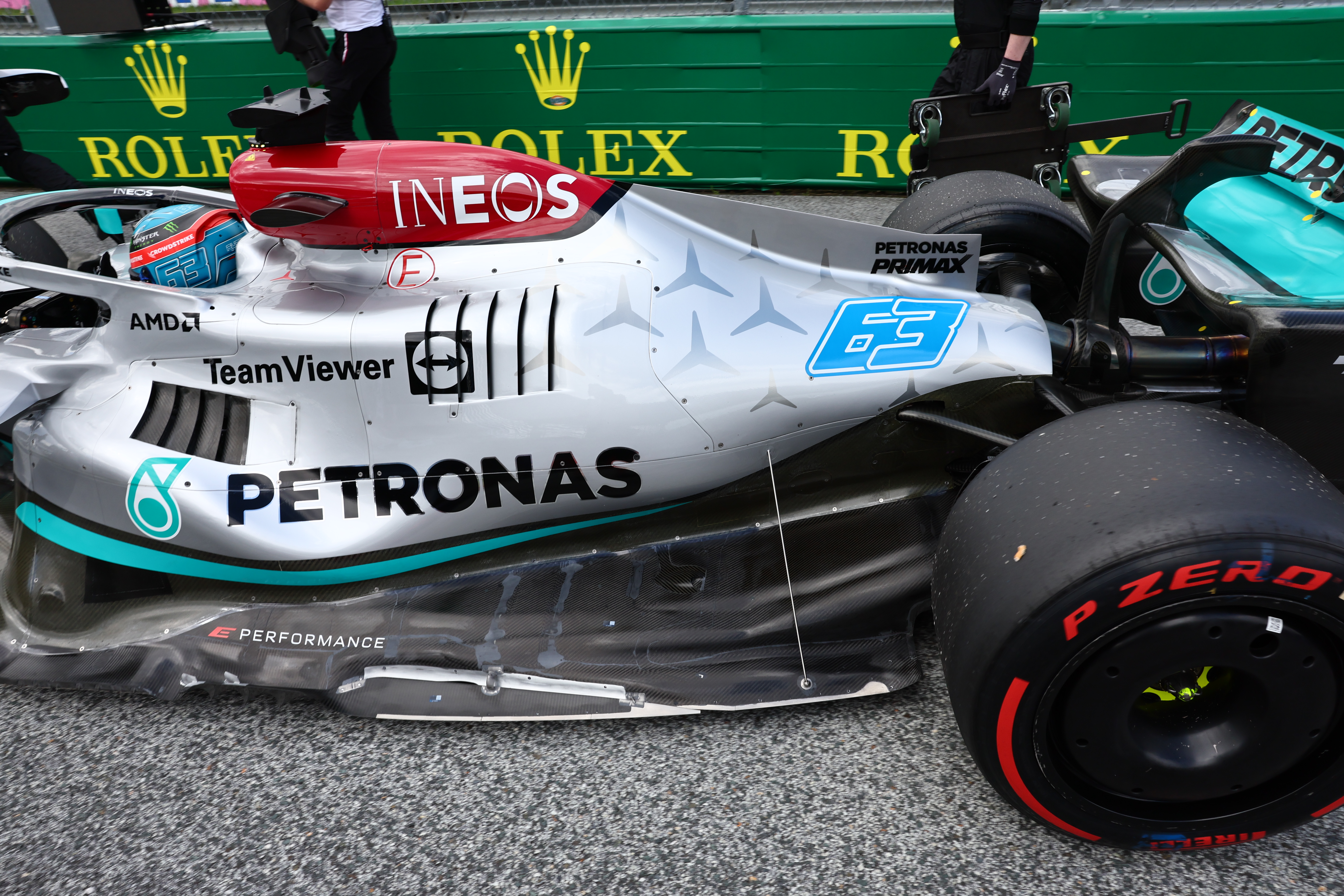

Wanting on the pictures of the ground, you’ll be able to see some strengthening items have been added. These will doubtless have been added to extend the ground stiffness to scale back the ground flexing, which may in a short time result in porpoising.
These aren’t a part of the cut-and-shut restore, and we might additionally see them the race earlier than at Silverstone, however it does present modifications will be made with out spending a fortune.
Including strips throughout the ground like this to strengthen it’s a very related course of to the one talked about above. However it will most likely been completed again within the workshops versus on the observe.
Mainly, you might be simply including extra materials to extend the stiffness. With that can come a small weight enhance, so once more it’s the compromise we frequently discuss – weight in opposition to aerodynamic acquire. These modifications would possibly add 1kg to the ground, which is actually too massive a rise.
I’ve to say, the end element alongside the outer fringe of the ground the place it goes from carbon (black) to a special materials (silver), which I’ve marked with a pink line, appears to be like extra like what I might count on to see at an historic F1 occasion at Silverstone quite than a 2022 F1 grand prix.
I do know Mercedes has been very busy looking for options to its porpoising and bouncing troubles, however this knife-edge on the surface of the ground it has created simply in entrance of the rear tyre might very simply be a serious a part of its issues.
Again at Jordan in 1993, once I was technical director, we have been having some rear tyre degradation issues with the Jordan 193. It was the primary yr of the narrower-track rules and we went the route of a shorter wheelbase to match that. It proved to be the fallacious resolution and we wanted to dig deep to attempt to get better.
Over a weekend, simply earlier than heading off to a the ultimate in-season take a look at at Estoril simply earlier than the ultimate races of the season, I made a decision we must always transfer the rear wheels rearward. This could enhance the wheelbase, however extra importantly enable us to run a extra ahead weight distribution.
The massive query was by how a lot? That was determined in a short time and simply by discovering out what size of clutch shaft our producer might manufacture over that weekend. We went for 15cm.
Our machine store set about carving a spacer out of a quite giant lump of aluminium and making up some longer engine-to-gearbox studs. In the meantime, the composites division minimize and shut two flooring, just like what Mercedes did in Austria. Who is aware of, it’d even have been the identical man who left Jordan to go to what’s now Mercedes a few years in the past!
Whereas that was occurring, a few us did the same factor to the engine cowl. It won’t have appeared fairly, however by Monday night time it was on the truck heading for Estoril.
It took a little bit of working to get the perfect out of the set-up, however the constructive factor was that each drivers have been pleased and the automobile now made extra sense to them, and we massively diminished the rear tyre degradation.
I suppose what that each one says is: the place there’s a will, there’s a means. And maybe the associated fee cap will drive the large groups particularly to make use of a bit extra ingenuity within the close to future quite than counting on endlessly making new components and throwing them on the automobile?
